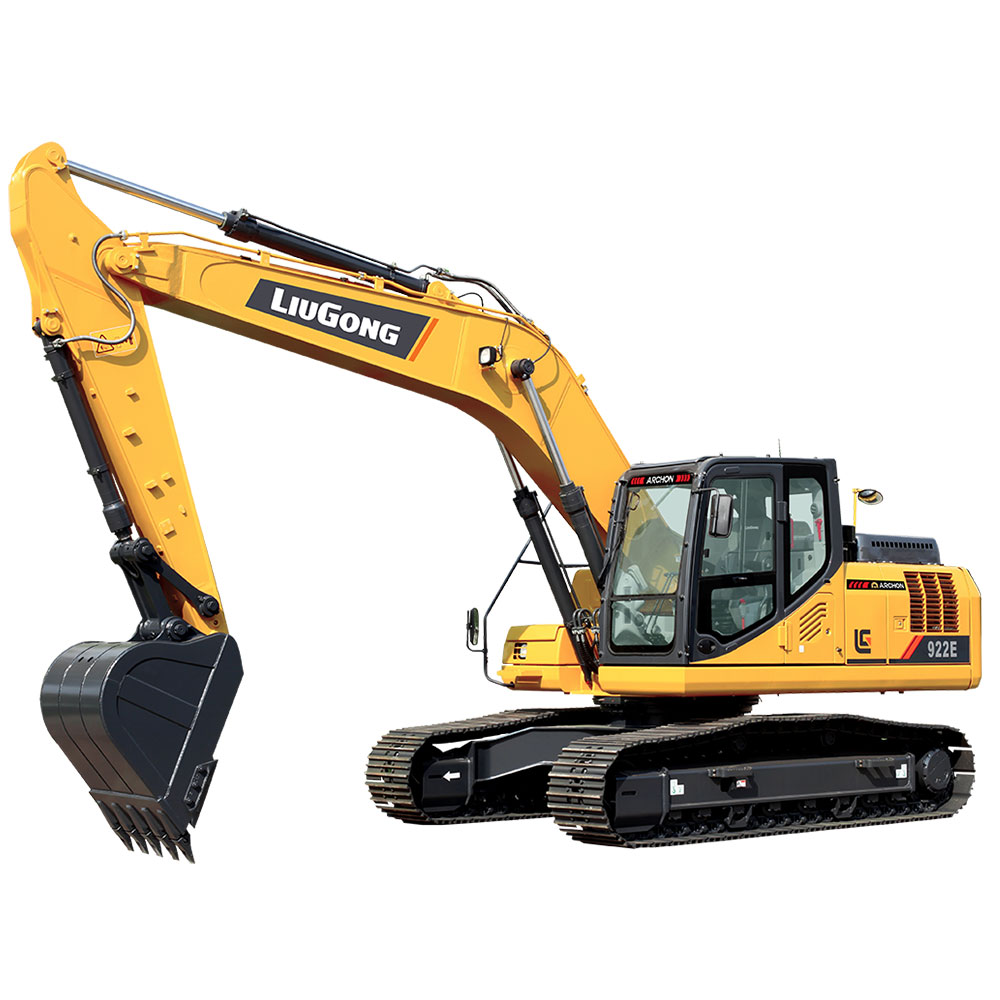

CLG922E Crawler Eexcavator
| ENGINE: | CUMMINS QSB7 TIER 3 (6 Cylinder Inline Turbocharged) 124kw (166hp @ 2050 rpm) Torque 614nm @ 1500 rpm Displacement 6.7 L |
| BUCKET CAPACITY: | 1.0 Cubic Meter |
| HYDRAULIC SYSTEM: | Kawasaki Pump (Max Pressure 5,410 Psi (37.3mpa) |
| TRACK SHOE WIDTH & SECTION PER SIDE: | 23.6 Inches (600mm) 49pcs. |
| TRACK LENGTH: | 4,440 MM (14.6 FT) |
| CHASSIS WIDTH: | 2,390MM |
| BOTTOM ROLLERS EACH SIDE: | 8 |
| ARM LENGTH: | 2,915 MM |
| BOOM LENGTH: | 5,710 MM |
| OPERATING WEIGHT: | 22,000 KG |
| OPERATORS CAB: | Air Conditioned |
| GRADEABILITY: | 35 Degrees |
| BREAKOUT FORCE (GROUND PRESSURE): | 105KPA |
