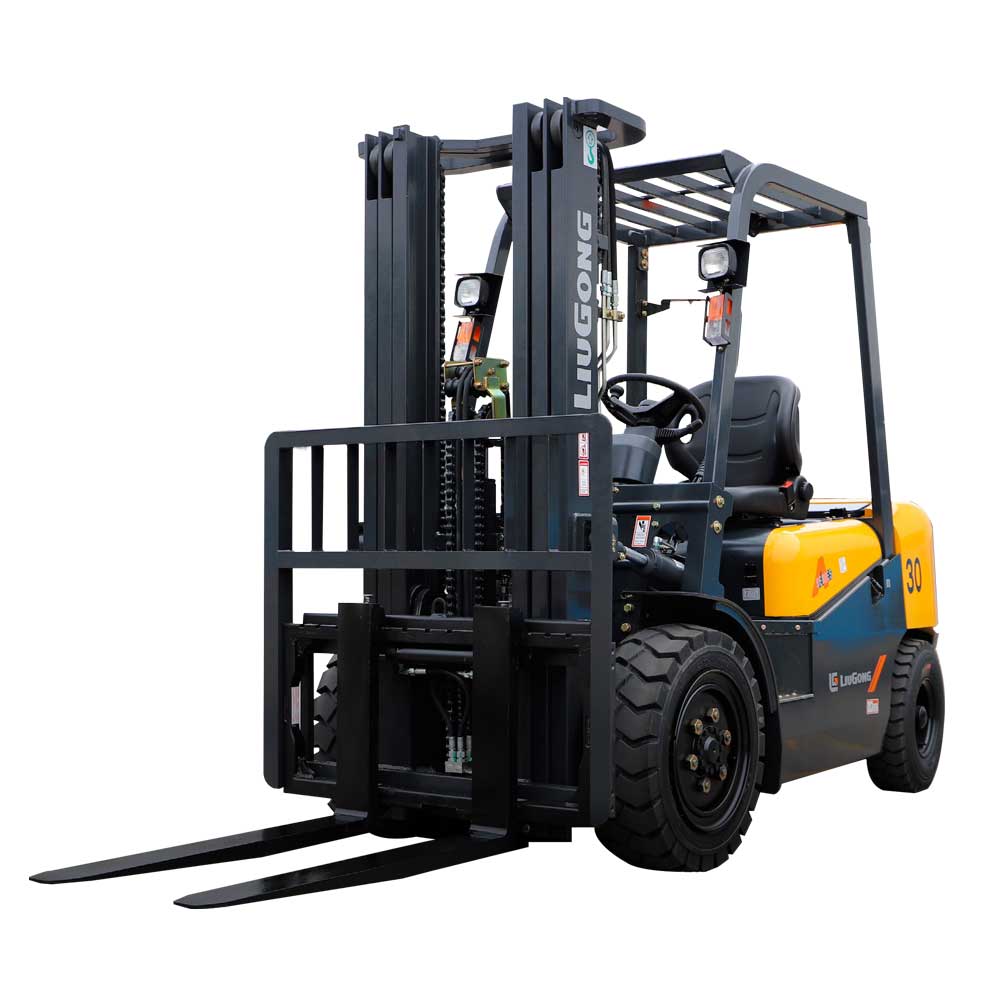

CPCD 35 Forklift
| ENGINE: | Xinchai A490BPG, CHN Stage II, 4 Cylinders, 2.54 liters Displacement, 36.8/2,650 kW/rpm Rated Power, 148/1,900 N.m/rpm Max. Torque |
| POWER TYPE: | Diesel |
| BASE CAPACITY: | 3,500 Kg Rated @ Load Center |
| LOAD CENTER: | 500 mm |
| SERVICE WEIGHT: | 4,430 kg (unloaded) |
| AXLE LOAD: | 7,080kg (loaded), 1,600kg (unloaded, front) 850kg (loaded), 2,830kg (unloaded, rear) |
| MAX FORK HEIGHT: | 3000mm with std 2-stage mast |
| LENGHT TO FORK FACE : | 2,743mm with std 2-stage mast |
| OVERALL WIDTH: | 1,225mm |
| OVERHEAD GUARD HEIGHT: | 2,170mm |
| MAX. DRAWER PULL: | 1,680kg (loaded) |
| MAX. GRADEABILITY: | 15/20% Loaded/Unloaded |
